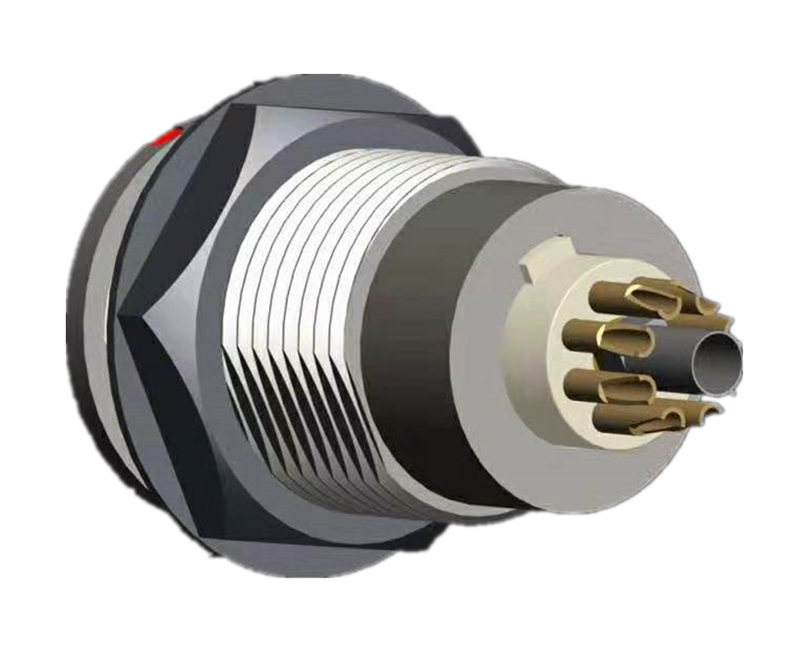

M9 Push-Pull connector
Your current location：Home-Products-188bet官网1-M9 push-pull connectorAmbient temperature - 20 ℃ ~ + 85 ℃
Joint forming: PPS or PEEK optional
Connecting nut / screw: nickel plated brass
Seal / O-ring: FKM
Insulation resistance: ≥ 100m Ω
Contact resistance: ≤ 0.5m Ω
Shielding: optional
|

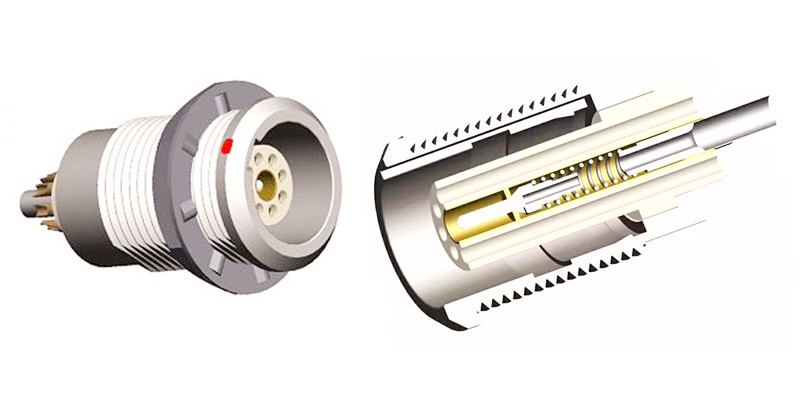

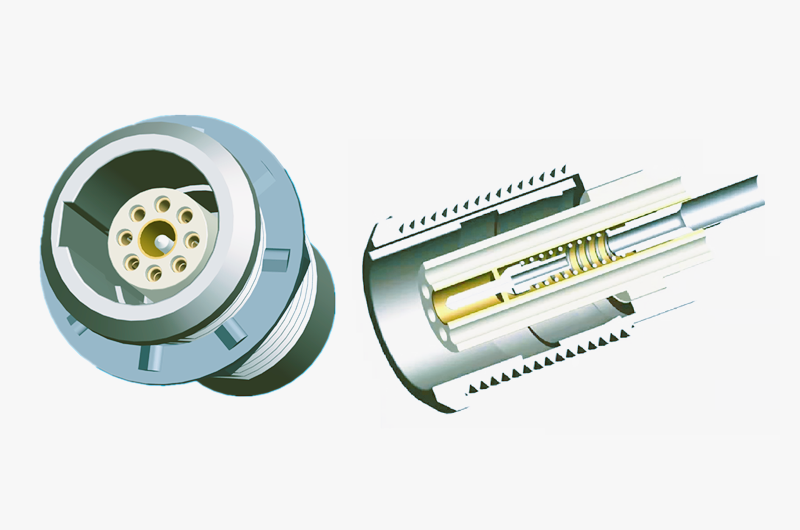

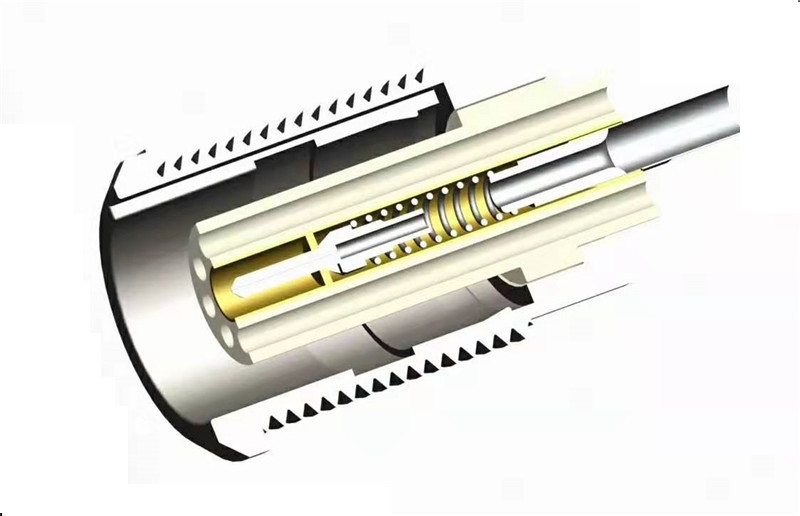

Hybird connector power and signal push-pull self-locking circular hybrid technology connector has an innovative surround shield, which interconnects the fiber Ethernet speed and power signal line, thus ensuring excellent signal integrity and best performance. At the same time, the circular hybrid push-pull self-locking connector is shielded and isolated in the fiber transmission and power signal transmission, providing a very high reliability similar product and easy plug-in operation. Two overlapping cermet tubes allow the signal to pass through the connector without crosstalk or EMI. The 8-pole (7 + 1) photoelectric hybrid 0b connector has two optical Ethernet data lines and four pin power lines, which can carry up to 6.0A power signal transmission lines. In the 6-pole (5 + 1) format, the transmission power of optical Ethernet data line and 5 power signal lines is up to 10.0a. Integrating power and data lines in one connector reduces cabling requirements and reduces installation time and associated costs. Sealed circular hybrid technology connector system is applicable to, but not limited to, industrial telecommunication process and automatic optical fiber control application, telecommunication infrastructure and base station. Circular hybrid technology with shielded connectors and cables is also suitable for many other harsh optoelectronic hybrid transmission applications where power and data lines are required to be concentrated in one device
Application industry Commercial vehicles railwa的远程信息处理技术y subway Data / communication Surveillance camera vision system national defense Sensors - power and signal industrial automation Automatic control HVAC control machine manufacturer production battery plant workshop data network process control robot and other machine control telecom vision system These are not all uses of this product. Only the most common part. Application industry Commercial vehicles railwa的远程信息处理技术y subway Data / communication Surveillance camera vision system national defense Sensors - power and signal industrial automation Automatic control HVAC control machine manufacturer production battery plant workshop data network process control robot and other machine control telecom vision system These are not all uses of this product. Only the most common part.
|
